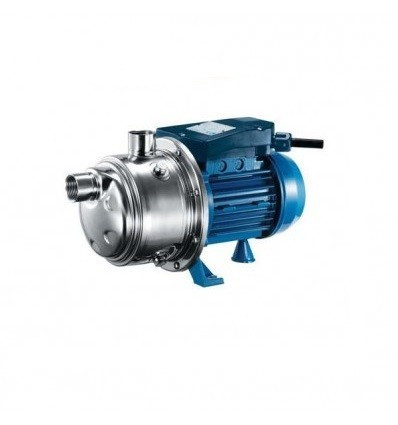

پمپ آبرسانی طبقاتی پنتاکس سری U
برند:پنتاکس
توضیحات
| مدل | قطر رانش mm | قطر مکش mm | قدرت الکتروموتور KW | دبی M³/H | هد M | برق مصرفی | دور موتور RPM | ||
| V | Ф | HZ | |||||||
| U 3S-70/3 | 25 | 25 | 0.52 | 4.8 | 32.7 | 220 | 1 | 50 | 2900 |
| U 3S-90/4 | 25 | 25 | 0.68 | 4.8 | 44.3 | 220 | 1 | 50 | 2900 |
| U 3S-100/5 | 25 | 25 | 0.74 | 4.8 | 55.3 | 220 | 1 | 50 | 2900 |
| U 3S-120/6 | 25 | 25 | 0.89 | 4.8 | 66.6 | 220 | 1 | 50 | 2900 |
| U 5S-200/7 | 25 | 25 | 1.5 | 8.4 | 81 | 220 | 1 | 50 | 2900 |
| U 7S-120/3 | 32 | 25 | 0.89 | 10.8 | 35.6 | 220 | 1 | 50 | 2900 |
| U 7S-120/3T | 32 | 25 | 0.89 | 10.8 | 35.6 | 380 | 3 | 50 | 2900 |
| U 7S-300/6 | 32 | 25 | 2.2 | 10.8 | 72.5 | 220 | 1 | 50 | 2900 |
| U 7S-300/6T | 32 | 25 | 2.2 | 10.8 | 72.5 | 220 | 1 | 50 | 2900 |
| U 9S-200/4 | 32 | 38 | 1.5 | 14.4 | 47.6 | 220 | 1 | 50 | 2900 |
| U 9S-200/4T | 32 | 38 | 1.5 | 14.4 | 47.6 | 380 | 3 | 50 | 2900 |
| U 18S-180/2T | 38 | 50 | 1.3 | 25.2 | 23.7 | 380 | 3 | 50 | 2900 |
| U 18S250/3T | 38 | 50 | 1.86 | 25.2 | 35.7 | 380 | 3 | 50 | 2900 |
| U 18S400/4T | 38 | 50 | 3 | 25.2 | 47.9 | 380 | 3 | 50 | 2900 |
| U 3-90/4 | 1" | 1" | 0.68 | 4.8 | 40.8 | 220 | 1 | 50 | 2900 |
| U 5-90/4 | 1" | 1" | 0.68 | 8.4 | 56.8 | 220 | 1 | 50 | 2900 |
| U 5-150/5 | 1" | 1" | 1.14 | 8.4 | 56.8 | 220 | 1 | 50 | 2900 |
| U 5-150/5T | 1" | 1" | 1.14 | 8.4 | 56.8 | 220 | 1 | 50 | 2900 |
| U 5-180/6 | 1" | 1" | 1.368 | 8.4 | 69.3 | 220 | 1 | 50 | 2900 |
| U 5-180/6T | 1" | 1" | 1.368 | 8.4 | 69.3 | 380 | 3 | 50 | 2900 |
| U 5-200/7 | 1" | 1" | 1.5 | 8.4 | 80.3 | 220 | 1 | 50 | 2900 |
| مدل | قطر رانش mm | قطر مکش mm | قدرت الکتروموتور KW | دبی M³/H | هد M | برق مصرفی | دور موتور RPM | ||
| V | Ф | HZ | |||||||
| U 5-200-7T | 1" | 1" | 1.5 | 8.4 | 80.3 | 380 | 3 | 50 | 2900 |
| U 7-250/5 | 1" | 1 1/4" | 1.9 | 9.6 | 62 | 220 | 1 | 50 | 2900 |
| U 7-250/5T | 1" | 1 1/4" | 1.9 | 9.6 | 62 | 380 | 3 | 50 | 2900 |
| U 7-300/6 | 1" | 1 1/4" | 2.3 | 9.6 | 74.3 | 220 | 1 | 50 | 2900 |
| U 7-300/6T | 1" | 1 1/4" | 2.3 | 9.6 | 74.6 | 380 | 3 | 50 | 2900 |
| U 7-350/7T | 1" | 1 1/4" | 2.66 | 9.6 | 85.9 | 380 | 3 | 50 | 2900 |
| U 9-200/4T | 1 1/4" | 1/2 1" | 1.5 | 14.4 | 47.1 | 380 | 3 | 50 | 2900 |
| U 9-200/4 | 1 1/4" | 1/2 1" | 1.5 | 14.4 | 47.1 | 380 | 3 | 50 | 2900 |
| U 9-250/5T | 1 1/4" | 1/2 1" | 1.9 | 14.4 | 59.2 | 380 | 3 | 50 | 2900 |
| U 5V-180/6T | 1/4 1" | 1/4 1" | 1.5 | 8.4 | 69.3 | 220 | 1 | 50 | 2900 |
| U 5V-200/7 | 1 1/4" | 1 1/4" | 1.5 | 8.4 | 80.3 | 220 | 1 | 50 | 2900 |
| U 5V-250/8 | 1 1/4" | 1 1/4" | 1.9 | 8.4 | 91.4 | 220 | 1 | 50 | 2900 |
| U 5V-250/8T | 1 1/4" | 1 1/4" | 1.9 | 8.4 | 91.4 | 380 | 3 | 50 | 2900 |
| U 5V-280/9 | 1 1/4" | 1 1/4" | 2.12 | 8.4 | 102.1 | 220 | 1 | 50 | 2900 |
| U 5V-280/9T | 1 1/4" | 1 1/4" | 2.12 | 8.4 | 102.1 | 380 | 3 | 50 | 2900 |
| U 5V-300/10 | 1 1/4" | 1 1/4" | 2.28 | 8.4 | 112.7 | 220 | 1 | 50 | 2900 |
| U5V-300/10T | 1 1/4" | 1 1/4" | 2.3 | 8.4 | 112.7 | 380 | 3 | 50 | 2900 |
| U 5V-350/11 | 1 1/4" | 1 1/4" | 2.66 | 8.4 | 122 | 220 | 1 | 50 | 2900 |
| U5V-350/11T | 1 1/4" | 1 1/4" | 2.66 | 8.4 | 122 | 380 | 3 | 50 | 2900 |
